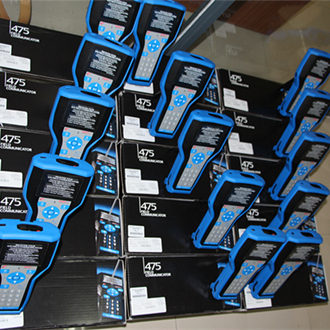

Emerson 475HP1ENA9GMTS Handheld 475 Hart Field Communicator
.
The Emerson Process Management 475 Field Communicator establishes the new standard for handheld communicators. With a full-color user interface, powerful diagnostic capabilities, and fast start up and operating times, the 475 will power your experience and simplify your work in the field.
The 475 Field Communicator supports all HART, FOUNDATION fieldbus, and Wireless HART devices and allows you to upgrade your HART 475 Field Communicator onsite using the Internet.
Uses for the 475 HART Field Communicator include:
• Configure field devices or perform diagnostics for effective troubleshooting in the field.
• Create a quality segment
• Detect power supply problems
• Run valve diagnostics
• Locate incorrect terminations and faulty devices without dragging a laptop into the plant.
The 475 is fully compatible with AMS Suite: Intelligent Device Manager. AMS Device Manager allows you to configure, calibrate, document, and troubleshoot HART, FOUNDATION fieldbus, and Wireless HART devices. Easily transfer device configurations between AMS Device Manager and the 475 via Bluetooth to ensure you are always looking at the most updated device information.
New HART and FOUNDATION fieldbus devices, as well as updates to existing devices, are continually introduced by device vendors. With Easy Upgrade, you can keep your Emerson Process Management HART 475 Field Communicator updated with the most current Device Descriptions (DDs) for all the devices in your plant. Update at your site, get only what you need, and do it when it is convenient for you.
| Process Management 475 Field Communicator Specifications | |
| Microprocessor | 80 MHz Hitachi SH3 |
| Memory internal flash | 32 MB |
| System card | 1 GB secure digital card |
| RAM | 32 MB |
| Weight | App. 1.65 lb (0.75 kg) w/battery |
| Display |
1/4 VGA (240 x 320 px) color, 3.5 in (8,9 cm) transreflective display w/touchscreen,anti-glare coat |
| Keypad |
25 keys including 4 action keys, 12 alphanumeric keys, tab key, function key,backlight key, power key,and 4 cursor-control (arrow) keys; membrane design with tactile feedback |
| Battery | Rechargeable lithium-ion power module |
|
Battery operating time |
20 hours - continuous use 40 hours - typical use 80 hours - standby mode |
|
Battery charger options |
Input voltage 100-240 VAC, 50-60 Hz Cables included with US, Europe, and UK plugs |
| Battery charger | Min DIN 6-pin jack |
| HART and Fieldbus | Three 4mm banana plugs (one common to HART and Foundation fieldbus) |
| IrDA Port |
IrDA (Infrared Data Access) port supporting up to 115 Kbps ±15 degrees recommended maximum angle from center line App. 18 in recommended maximum distance |
| Bluetooth |
Up to 32.8 ft (10 m) communication distance Uses standard Windows drivers FCC, IC and CE approvals |
Features
• Full-color graphical user interface supports graphs, charts, gauges and pictures for quicker diagnosis
• Gain powerful device diagnostics in the field to enable troubleshooting
• Long-lasting Lithium-Ion power module delivers days - not hours - of power
• Universal support for HART, WirelessHART, and FOUNDATION fieldbus devices
• ValveLink Mobile application delivers advanced field diagnostics for Fisher FIELDVUE digital valve controllers
• Localized language support for English, German and Russian
• Easy Upgrade delivers the ability to keep your system software and device drivers updated through the web
• Bluetooth communication speeds transfer of information
• Host System Interoperability gives you flexibility
Emerson 475HP1ENA9GMTS Handheld 475 Hart Field Communicator
If you’re in the field service business and you already know the importance of having reliable, it is easy to use equipment. When it comes to hart communicator Emerson has established the well deserved reputation for quality with models like the 375 field communicator and that tradition continues in their most recent model the Emerson 475 Field Communicator.
When holding the 475 in hand you may feel the quality and the full color graphical interface makes it easy to use with clear graphics and adjustable brightness for working in varied lighting conditions.
The speed of the 475 is a noticeable improvement over similar devices and the boot time is nearly instantaneous. A long lasting lithium ion power module ensures that you can count on your Emerson 475 for days not hours and with universal support for hart, wirelesshart and foundation fieldbus devices its ready for the task at hand.
With the addition of Bluetooth for speedy information transfer and accessory kits for the field and the workshop, it’s no wonder this hart 475 unit is so popular all over the world.
Emerson 475HP1ENA9GMTS Handheld 475 Hart Field Communicator
The 475 Field Communicator is powered by a Li-Ion battery that has a green, 6-pin connector. The power supply/charger also has a green connector to match the appropriate connector on the battery. See Figure 2-1 for the location of the connector.
Prior to using the 475 Field Communicator without the power supply/charger connected, fully charge the battery. Guidelines and precautions Understand and follow the guidelines and precautions below before using the battery or power supply/charger.
• When transporting a Li-Ion battery, follow all applicable regulations.
• Protect the battery and power supply/charger from moisture, and respect operating and storage temperature limits. See Appendix A “Reference data” for more information.
• Do not cover the battery or power supply/charger, subject it to prolonged periods of direct sunlight, or place it upon or next to heat-sensitive materials.
• Charge the battery with only the Field Communicator power supply/charger. The power supply/charger should not be used with other products. Failure to comply may permanently damage your 475 Field Communicator and will void the IS approval and the warranty.
• Do not open or modify the battery or power supply/charger. There are no user-serviceable components or safety elements inside.
Our product provides instructions on basic features and functions of the 475 Field Communicator. It also provides information on assembly, components, starting, entering standby, shutting down, settings, applications, and maintaining the 475 Field Communicator. We supply the 475 field communicator for years with competitive price .The functionality described in this section is based on system software version 3.8.
We mainly supply Yokogawa, Siemens, Endress Hauser instruments. Our 475 Field Communicator supports HART and FOUNDATION fieldbus devices, letting you configure, maintain, or troubleshoot devices. When you use the 475 Field Communicator to communicate with devices, follow all standards and procedures applicable to the location. Failure to comply may result in equipment damage and/or personal injury. Please be sure to understand and comply with the sections in this manual. The 475 Field Communicator includes a color LCD touch screen, a Li-Ion battery (Power Module), a SH3 processor, memory components, System Card, and integral communication and measurement circuitry. The hart Field Communicator also supports multiple languages. See the readme file included with the Field Communicator Easy Upgrade Utility or www.fieldcommunicator.net for more information.
Emerson 475 hart communicator manual
Emerson 475 hart communicator price
Emerson 475 field communicator easy upgrade utility
Emerson 475 hart communicator calibration
Emerson 475 hart field communicator
475 hart communicator
475 hart communicator price
handheld 475 hart field communicator
Model Code for Ordering:
| 475HP1EKL9GM9 | Emerson 475HP1EKL9GM9 475 Field Communicator with Power Supply & Charger, Intrinsically Safe, Easy Upgrade Option |
| 475HP1EKL9GM9A | Emerson 475HP1EKL9GM9A 475 Field Communicator with Power Supply & Charger, Intrinsically Safe Spare Battery |
| 475HP1EKL9GM9AS | Emerson 475HP1EKL9GM9AS 475 Field Communicator with Power Supply & Charger, Intrinsically Safe Spare Battery, Protective Rubber Boot with Stand |
| 475HP1EKL9GM9S | Emerson 475HP1EKL9GM9S 475 Field Communicator with Power Supply & Charger, Intrinsically Safe Protective Rubber Boot with Stand |
| 475HP1EKL9GMT | Emerson 475HP1EKL9GMT 475 Field Communicator with Power Supply & Charger, Intrinsically Safe Bluetooth Communication |
| 475HP1EKL9GMTA | Emerson 475HP1EKL9GMTA 475 Field Communicator with Power Supply & Charger, Intrinsically Safe Bluetooth Communication, Spare Battery |
| 475HP1EKL9GMTAS | Emerson 475HP1EKL9GMTAS 475 Field Communicator: Power Supply & Charger, Intrinsically Safe Bluetooth, Spare Battery, Protective Rubber Boot: Stand |
| 475HP1EKL9GMTS | Emerson 475HP1EKL9GMTS 475 Field Communicator: Power Supply & Charger, Intrinsically Safe Bluetooth, Protective Rubber Boot: Stand |
| 475HP1EKLUGM9 | Emerson 475HP1EKLUGM9 475 Field Communicator with Power Supply & Charger, Intrinsically Safe, Easy Upgrade Option |
| 475HP1EKLUGM9A | Emerson 475HP1EKLUGM9A 475 Field Communicator with Power Supply & Charger, Intrinsically Safe, Easy Upgrade Option, Spare Battery |
| 475HP1EKLUGM9AS | Emerson 475HP1EKLUGM9AS 475 Field Communicator: Power Supply & Charger, IS, Easy Upgrade Option, Spare Battery, Protective Rubber Boot: Stand |
| 475HP1EKLUGM9S | Emerson 475HP1EKLUGM9S 475 Field Communicator with Power Supply & Charger, Intrinsically Safe, Easy Upgrade Option, Protective Rubber Boot with Stand |
| 475HP1EKLUGMT | Emerson 475HP1EKLUGMT 475 Field Communicator with Power Supply & Charger, Intrinsically Safe, Easy Upgrade Option, Bluetooth Communication |
| 475HP1EKLUGMTA | Emerson 475HP1EKLUGMTA 475 Field Communicator: Power Supply & Charger, Intrinsically Safe, Easy Upgrade Option, Bluetooth, Spare Battery |
| 475HP1EKLUGMTAS | Emerson 475HP1EKLUGMTAS 475 Field Communicator: Power Supply & Charger, IS, Easy Upgrade, Bluetooth, Spare Battery, Protective Rubber Boot: Stand |
| 475HP1EKLUGMTS | Emerson 475HP1EKLUGMTS 475 Field Communicator: Power Supply & Charger, IS, Easy Upgrade Option, Bluetooth, Protective Rubber Boot: Stand |
| 475HP1ENA9GM9 | Emerson 475HP1ENA9GM9 475 Field Communicator with Power Supply & Charger |
| 475HP1ENA9GM9A | Emerson 475HP1ENA9GM9A 475 Field Communicator with Power Supply & Charger, Spare Battery |
| 475HP1ENA9GM9AS | Emerson 475HP1ENA9GM9AS 475 Field Communicator with Power Supply & Charger, Spare Battery, Protective Rubber Boot with Stand |
| 475HP1ENA9GM9S | Emerson 475HP1ENA9GM9S 475 Field Communicator with Power Supply & Charger, Protective Rubber Boot with Stand |
| 475HP1ENA9GMT | Emerson 475HP1ENA9GMT 475 Field Communicator with Power Supply & Charger, Bluetooth Communication |
| 475HP1ENA9GMTA | Emerson 475HP1ENA9GMTA 475 Field Communicator with Power Supply & Charger, Bluetooth Communication, Spare Battery |
| 475HP1ENA9GMTAS | Emerson 475HP1ENA9GMTAS 475 Field Communicator with Power Supply & Charger, Bluetooth Communication, Spare Battery, Protective Rubber Boot with Stand |
| 475HP1ENA9GMTS | Emerson 475HP1ENA9GMTS 475 Field Communicator with Power Supply & Charger, Bluetooth Communication, Protective Rubber Boot with Stand |
| 475HP1ENAUGM9 | Emerson 475HP1ENAUGM9 475 Field Communicator with Power Supply & Charger, Easy Upgrade Option |
| 475HP1ENAUGM9A | Emerson 475HP1ENAUGM9A 475 Field Communicator with Power Supply & Charger, Easy Upgrade Option, Spare Battery |
| 475HP1ENAUGM9AS | Emerson 475HP1ENAUGM9AS 475 Field Communicator with Power Supply & Charger, Easy Upgrade Option, Spare Battery, Protective Rubber Boot with Stand |
| 475HP1ENAUGM9S | Emerson 475HP1ENAUGM9S 475 Field Communicator with Power Supply & Charger, Easy Upgrade Option, Protective Rubber Boot with Stand |
| 475HP1ENAUGMT | Emerson 475HP1ENAUGMT 475 Field Communicator with Power Supply & Charger, Easy Upgrade Option, Bluetooth Communication |
| 475HP1ENAUGMTA | Emerson 475HP1ENAUGMTA 475 Field Communicator with Power Supply & Charger, Easy Upgrade Option, Bluetooth Communication, Spare Battery |
| 475HP1ENAUGMTAS | Emerson 475HP1ENAUGMTAS 475 Field Communicator: Power Supply & Charger, Easy Upgrade Option, Bluetooth, Spare Battery, Protective Rubber Boot: Stand |
| 475HP1ENAUGMTS | Emerson 475HP1ENAUGMTS 475 Field Communicator: Power Supply & Charger, Easy Upgrade Option, Bluetooth, Protective Rubber Boot: Stand |
| 475HP9EKL9GM9 | Emerson 475HP9EKL9GM9 475 Field Communicator with No Power Supply/Charger, Intrinsically Safe |
| 475HP9EKL9GM9A | Emerson 475HP9EKL9GM9A 475 Field Communicator with No Power Supply/Charger, Intrinsically Safe, Spare Battery |
| 475HP9EKL9GM9AS | Emerson 475HP9EKL9GM9AS 475 Field Communicator with No Power Supply/Charger, Intrinsically Safe, Spare Battery, Protective Rubber Boot with Stand |
| 475HP9EKL9GM9S | Emerson 475HP9EKL9GM9S 475 Field Communicator with No Power Supply/Charger, Intrinsically Safe, Protective Rubber Boot with Stand |
| 475HP9EKL9GMT | Emerson 475HP9EKL9GMT 475 Field Communicator with No Power Supply/Charger, Intrinsically Safe, Bluetooth Communication |
| 475HP9EKL9GMTA | Emerson 475HP9EKL9GMTA 475 Field Communicator with No Power Supply/Charger, Intrinsically Safe, Bluetooth Communication, Spare Battery |
| 475HP9EKL9GMTAS | Emerson 475HP9EKL9GMTAS 475 Field Communicator: No Power Supply/Charger, Intrinsically Safe, Bluetooth, Spare Battery, Protective Rubber Boot: Stand |
| 475HP9EKL9GMTS | Emerson 475HP9EKL9GMTS 475 Field Communicator: No Power Supply/Charger, Intrinsically Safe, Bluetooth, Protective Rubber Boot: Stand |
| 475HP9EKLUGM9 | Emerson 475HP9EKLUGM9 475 Field Communicator with No Power Supply/Charger, Intrinsically Safe |
| 475HP9EKLUGM9A | Emerson 475HP9EKLUGM9A 475 Field Communicator with No Power Supply/Charger, Intrinsically Safe, Easy Upgrade Option, Spare Battery |
| 475HP9EKLUGM9AS | Emerson 475HP9EKLUGM9AS 475 Field Communicator: No Power Supply/Charger, IS, Easy Upgrade Option, Spare Battery, Protective Rubber Boot: Stand |
| 475HP9EKLUGM9S | Emerson 475HP9EKLUGM9S 475 Field Communicator with No Power Supply/Charger, Intrinsically Safe, Easy Upgrade Option, Protective Rubber Boot with Stand |
| 475HP9EKLUGMT | Emerson 475HP9EKLUGMT 475 Field Communicator with No Power Supply/Charger, Intrinsically Safe, Easy Upgrade Option, Bluetooth Communication, |
| 475HP9EKLUGMTA | Emerson 475HP9EKLUGMTA 475 Field Communicator: No Power Supply/Charger, Intrinsically Safe, Easy Upgrade Option, Bluetooth, Spare Battery |
| 475HP9EKLUGMTAS | Emerson 475HP9EKLUGMTAS 475 Field Communicator: No Power Supply/Charger, IS, Easy Upgrade, Bluetooth, Spare Battery, Protective Rubber Boot: Stand |
| 475HP9EKLUGMTS | Emerson 475HP9EKLUGMTS 475 Field Communicator: No Power Supply/Charger, IS, Easy Upgrade Option, Bluetooth, Protective Rubber Boot: Stand |
| 475HP9ENA9GM9 | Emerson 475HP9ENA9GM9 475 Field Communicator with No Power Supply/Charger |
| 475HP9ENA9GM9A | Emerson 475HP9ENA9GM9A 475 Field Communicator with No Power Supply/Charger, Spare Battery |
| 475HP9ENA9GM9AS | Emerson 475HP9ENA9GM9AS 475 Field Communicator with No Power Supply/Charger, Spare Battery, Protective Rubber Boot with Stand |
| 475HP9ENA9GM9S | Emerson 475HP9ENA9GM9S 475 Field Communicator with No Power Supply/Charger, Protective Rubber Boot with Stand |
| 475HP9ENA9GMT | Emerson 475HP9ENA9GMT 475 Field Communicator with No Power Supply/Charger, Bluetooth Communication, |
| 475HP9ENA9GMTA | Emerson 475HP9ENA9GMTA 475 Field Communicator with No Power Supply/Charger, Bluetooth Communication, Spare Battery |
| 475HP9ENA9GMTAS | Emerson 475HP9ENA9GMTAS 475 Field Communicator with No Power Supply/Charger, Bluetooth Communication, Spare Battery, Protective Rubber Boot with Stand |
| 475HP9ENA9GMTS | Emerson 475HP9ENA9GMTS 475 Field Communicator with No Power Supply/Charger, Bluetooth Communication, Protective Rubber Boot with Stand |
| 475HP9ENAUGM9 | Emerson 475HP9ENAUGM9 475 Field Communicator with No Power Supply/Charger |
| 475HP9ENAUGM9A | Emerson 475HP9ENAUGM9A 475 Field Communicator with No Power Supply/Charger, Easy Upgrade Option, Spare Battery |
| 475HP9ENAUGM9AS | Emerson 475HP9ENAUGM9AS 475 Field Communicator with No Power Supply/Charger, Easy Upgrade Option, Spare Battery, Protective Rubber Boot with Stand |
| 475HP9ENAUGM9S | Emerson 475HP9ENAUGM9S 475 Field Communicator with No Power Supply/Charger, Easy Upgrade Option, Protective Rubber Boot with Stand |
| 475HP9ENAUGMT | Emerson 475HP9ENAUGMT 475 Field Communicator with No Power Supply/Charger, Easy Upgrade Option, Bluetooth Communication, |
| 475HP9ENAUGMTA | Emerson 475HP9ENAUGMTA 475 Field Communicator with No Power Supply/Charger, Easy Upgrade Option, Bluetooth Communication, Spare Battery |
| 475HP9ENAUGMTAS | Emerson 475HP9ENAUGMTAS 475 Field Communicator: No Power Supply/Charger, Easy Upgrade Option, Bluetooth, Spare Battery, Protective Rubber Boot: Stand |
| 475HP9ENAUGMTS | Emerson 475HP9ENAUGMTS 475 Field Communicator: No Power Supply/Charger, Easy Upgrade Option, Bluetooth, Protective Rubber Boot: Stand |
